A reliable supplier for drill pipe elevator, casing elevator, drill collar elevator, tubing elevator, slip type elevator, single joint elevator, sucker rod elevator, elevator links, perfection links, safety clamps, rotary slips
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
API Products Perfection links & Drill collar lift adaptor |

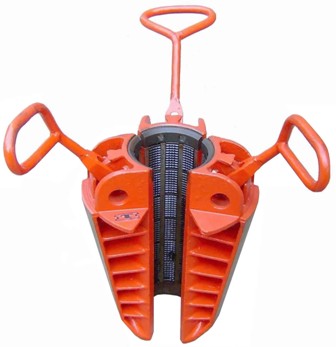

Rotary slips Rotary slips is designed and manufactured as per API Spec 7K "Drilling and Well Servicing Equipment", and Rotary Slips are used to handle drill pipes in oil and gas drilling operation, all rotary slips are made of high quality alloy steel, heat treated and NDT tested, with an API taper of 4 inch/feet on the diameter, self-centering full wrap around grip, rotary slips are fitted with replaceable type inserts and can accommodate the pipe sizes from 2⅜" to 5½" OD, rotary slips can be available three types: SDS rotary slips, SDML rotary slips and SDXL rotary slips as per the grip length and insert bowl contact, SDS rotary slips are designed for shallow hole drilling, SDML rotary slips are for medium depth drilling, and SDXL rotary slips are for deep drilling, rotary slips are furnished with three upright handles with elastomer on grip. All rotary slips bear API monogram and can be provided additional inserts as per requirement.

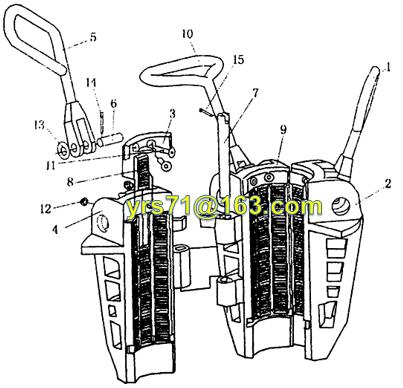

Rotary slips exploded figure

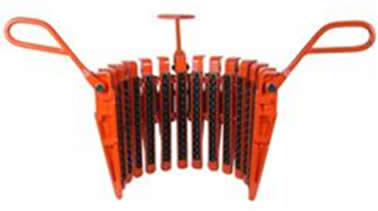

Casing slips Casing Slips are used to handle casing strings in oil and gas drilling operation, all casing slips are made of high quality alloy steel, heat treated and NDT tested, with an API taper of 4 inch/feet on the diameter, self centering full wrap around grip, casing slips are fitted with replaceable type inserts and can accommodate the casing strings from 6⅝" to 30" OD by varying the circular button size and adding or removing body segments. Casing slips are furnished with three upright handles with elastomer on grip. All casing slips bear API monogram and can be provided additional inserts as per requirement.
Drill collar slips Drill Collar Slips are used to handle drill collar and elevator plug in oil and gas drilling operation, all drill collar slips are made of high quality alloy steel, heat treated and NDT tested, with an API taper of 4 inch/feet on the diameter, self centering full wrap around grip, fitted with circular button inserts, and can accommodate slip recess type drill collars or slick type drill collars from 4⅛" to 11¼" OD by adding or removing body segments. This type is equal to DCS-S drill collar slips or DCS-R drill collar slips or DCS-L drill collar slips. drill collar slips are furnished with three upright handles with elastomer on grip. All drill collar slips are flat on top to be able to accommodate safety clamps, and each drill collar slips bears API monogram and can be provided additional inserts as per requirement.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
