Manual tongs are designed and manufactured as per API Spec 7K "Drilling and Well Servicing Equipment" for driving Kelly in the drilling operation, and manual tongs are conventional tools for making up and breaking out connections of tubular goods, from light tubing to heavy wall drill pipe or drill collar. Manual tongs covers pipe sizes from 2⅜inch to 36inch, and varies in torque capacity from 35kN·m to 140kN·m. Manual tongs are loaded when in service, line pull on lever should be at a right angle to axis of lever, and tong dies must be fully engaged, not to exceed the rating torque on manual tongs at any time. Any manual tongs are cast from high quality alloy steel, heat-treated and MPI tested, and toque test for manual tongs are always 1.5 times of the rating torque, manual tongs can be assembled by removing the hanger and turning the complete tong over.

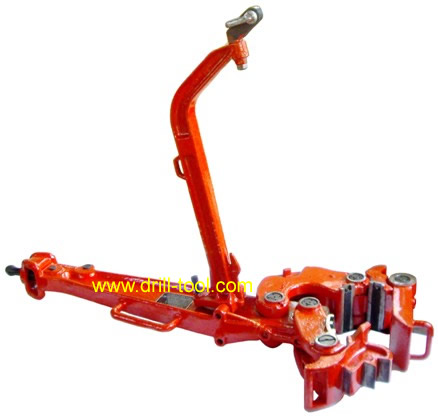

Manual Tong Model B  (Q3⅜-12¾/75kN·m)

Manual tong specification

Product photo

Jaw No.

Step of each jaw

Size Range (inch)

Torque

(kN·m)

5a

1

3⅜, 3¾, 4⅛ ,

55

2

4⅛, 4¼, 4½, 4⅝, 4¾, 5, 5⅛, 5¼

75

5b

1

4¼, 4½, 4⅝, 4¾, 5, 5⅛, 5¼

2

5, 5⅛, 5¼, 5⅜, 5½, 59/16, 5⅝, 5¾

3

6, 6⅛, 6¼, 6⅜, 6½, 6¾

5b1

1

5¼, 5⅜, 5½, 59/16, 5⅝, 5¾

2

6, 6⅛, 6¼, 6⅜, 6½, 6⅝

3

6¾, 7, 7⅜, 8

55

5c

1

6⅝, 6¾, 7, 71/16, 7¼, 7⅜

75

2

7⅜, 7⅝, 7¾, 8

3

8½, 8⅝

55

5d

1

8½, 8⅝, 9½, 9⅝

2

10⅝, 10¾

5e

1

11¾

2

12¾

manual tong Model B

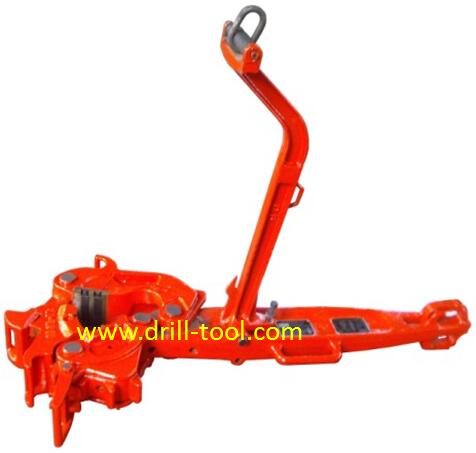

Manual Tong Model DB (Q 3½-17/90kN•m)

Manual tong specification

Product photo

Jaw No.

Step of jaws

Size Range (inch)

Torque (kN·m)

1#

1

3½~4½, 4½~6

90

2

5~7

3

6~8¼

2#

1

8~9⅝

2

10⅝~11¼

3#

1

11¾~12¾

55

2

13⅜~14⅜

4#

2

16~17

manual tong model DB

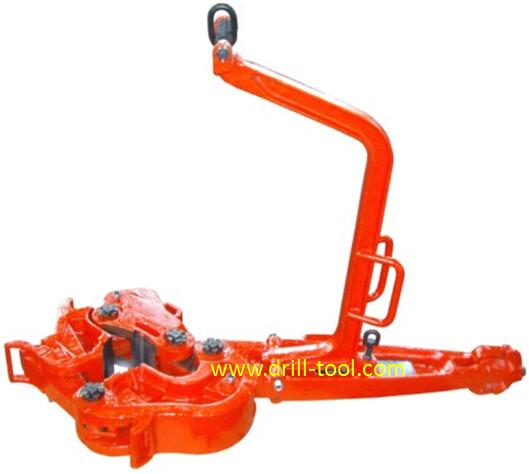

Manual Tong Model SDD (Q 4-17/140kN•m)

Manual tong specification

Product photo

Jaw No.

Step of each jaw

Size Range (inch)

Torque

(kN·m)

1

1

4~5½, 5½~5¾

140

2

5½~6⅝, 6½~7¼

3

6⅝~7⅝, 7¾~8½

2

1

8½~9, 9½~10¾

2

10¾~12

3

1

12~12¾

100

2

13⅜~14, 15

4

2

15¾

80

5

2

16, 17

Manual Tong Model SDD

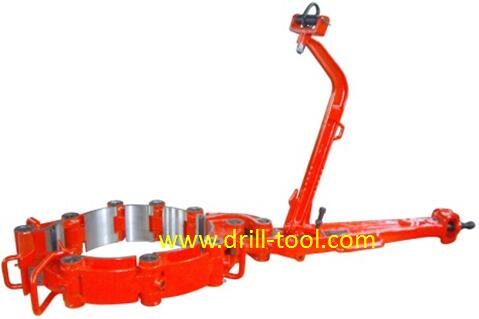

Manual Tong for Casing running (Q13⅜-36/35kN·m)

Manual tong specification

Product photo

Size Range (inch)

13⅜~14½

14½~16

16~17½

17½~19

19~20

20~21½

21½~23

24~25½

25½~27

27~28½

28½~30

30~31½

31½~33

33~34½

34½~36

manual tong for casing

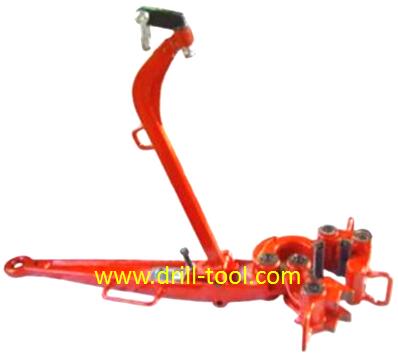

Manual Tong for work-over operation (Q2⅜-10¾/35kN·m)

Manual tong specification

Product photo

Jaw No.

Size Range (inch)

Torque (kN·m)

1#

2⅜~4½

35

2#

4½ ~6½

3#

6½ ~8⅝

4#

9⅝~10¾



manual tong for workover operation
