Casing Elevator
General
Casing elevators is designed and manufactured
in line with API Spec 8C ¡°Specification for Drilling and
Production Hoisting Equipment¡±, and casing elevators can be available with SLX model and
CD model in configuration, SLX casing elevators are cast from high
quality alloy steel, while CD casing elevators are forged from high
quality alloy steel and CD casing elevators are more popular in
China, Russia, Uzbekistan, Kazakhstan and other Middle Asia
countries, both SLX casing elevators and CD casing elevators can be
available in Taixing Petroleum Machinery Co., Ltd., sometimes TA
casing elevators are asked for, and this model can be available.
SLX casing elevator
SLX casing elevators are conventional collar type side door
elevators for handling casing in drilling operation, SLX casing
elevators are cast from high quality alloy steel, heat-treated,
and NDT tested. The rated loads rang from 150t(1350kN) to
350t(3150kN), and cover pipe sizes from 4½" to 24" OD, each
casing elevator is 1.5 times of the working load tested. SLX casing elevator is constructed in two halves, the two halves are
jointed together by hinge pin in such a way to give it a side
door construction feature along with a proper balance, one end
of both the haves are hinged to each other and the other ends
has a latching mechanism with a safety lock. Casing elevators
are equipped with easy and safe operating handles at the front,
link ears conform to API elevator links, SLX casing elevators
bear API monogram as per API requirements, and marked with size
of casing and rated working capacity. each casing elevator is
provided grease nipples for lubrication of the movable pins, API
monogram in conjunction with numbers, product series numbers are
hard die stamped on shoulders of casing elevators for tracing,
and casing elevators shoulders are die stamped with size of
casing and rated working capacity. Manufacturer¡¯s name plates
are provided on bodies of casing elevators, warranty for casing
elevators are listed in casing elevator manual. |
Partial technical data for
SLX casing elevators are offered as
follows:
Specification |
Elevator bore
(mm) |
Casing O.D. |
Rated Load
(ton) |
in |
mm |
SLX 117/(load) |
117 (116.96) |
4½ |
114.30 |
150
200
250
350 |
SLX 123/( ) |
123 (123.04) |
4¾ |
120.65 |
SLX 130/( ) |
130 (130.18) |
5 |
127.00 |
SLX 142/( ) |
142 (142.88) |
5½ |
139.70 |
SLX 149/( ) |
149 (149.23) |
5¾ |
146.05 |
SLX 156/( ) |
156 (156.58) |
6 |
152.40 |
SLX 171/( ) |
171 (171.45) |
6⅝ |
168.28 |
SLX 181/( ) |
181 (180.98) |
7 |
177.85 |
SLX 197/( ) |
197 (197.64) |
7⅝ |
193.68 |
SLX 200/( ) |
200 (200.81) |
7¾ |
196.85 |
SLX 223/( ) |
223 (223.14) |
8⅝ |
219.08 |
SLX 233/( ) |
233 (232.56) |
9 |
228.60 |
SLX 248/( ) |
248 (248.44) |
9⅝ |
244.48 |
SLX 254/( ) |
254 (254.79) |
9⅞ |
250.83 |
SLX 277/( ) |
277 (277.83) |
10¾ |
273.05 |
SLX 303/( ) |
303 (303.23) |
11¾ |
298.45 |
SLX 331/( ) |
331 (331.80) |
12⅞ |
327.03 |
SLX 344/( ) |
344 (344.50) |
13⅜ |
339.73 |
SLX 350/( ) |
350 (350.85) |
13⅝ |
346.08 |
SLX 360/( ) |
360 (360.76) |
14 |
355.60 |
SLX 411/( ) |
411 (411.96) |
16 |
406.40 |
SLX 478/( ) |
478 (479.43) |
18⅝ |
473.00 |
SLX 515/( ) |
515 (515.14) |
20 |
508.00 |
|
|
Configuration and Description of SLX casing elevator
 |
S.N. |
Name |
Qty |
1 |
Body |
1 |
2 |
Door |
1 |
3 |
Chain |
1 |
4 |
Safety pin/set latch pin |
1 |
5 |
Hinge pin retainer |
1 |
6 |
Hinge pin |
1 |
7 |
Grease fitting |
1 |
8 |
Link block bolt |
2 |
9 |
Link block |
2 |
10 |
Latch lock pin |
1 |
11 |
Latch lock |
1 |
12 |
Latch lock spring |
1 |
13 |
Retainer pin |
1 |
14 |
Link block pin |
2 |
15 |
Cotter Pin |
2 |
16 |
Split pin |
2 |
17 |
Roller |
1 |
18 |
Roller pin |
1 |
19 |
Split pin |
1 |
20 |
Latch pin |
1 |
21 |
Latch spring |
1 |
22 |
Pin carrier |
1 |
23 |
Latch |
1 |

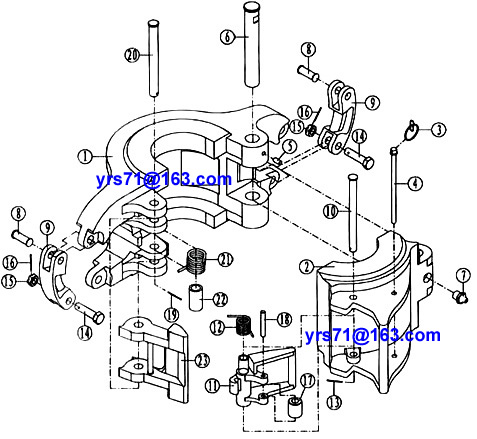

Configuration and exploded
figure for SLX casing elevators are the same for
diffrent dimension or working load of elevator. Body,
door and latch are not used as replacement parts, others
are replacement parts. Replacement parts of SLX casing
elevators offered by Taixing Company cannot be
interchangeable with those casing elevators supplied by
other manufacturer. |
CD casing elevator
CD casing
elevators are conventional collar type side door elevators for handling
casing in drilling operation, CD casing elevators are forged from high
quality alloy steel, heat-treated, and NDT tested. The rated loads rang from
150t(1350kN) to 500t(4500kN), and cover pipe sizes from 4½" to 30" OD, each
casing elevator is 1.5 times of the working load tested. CD casing elevator
is constructed in two halves, the two halves are jointed together by hinge
pin in such a way to give it a side door construction feature along with a
proper balance, one end of both the haves are hinged to each other and the
other ends has a lock mechanism with top and bottom lock pin. Casing
elevators are equipped with easy and safe operating handles at the front,
link ears conform to API elevator links, CD casing elevators bear API
monogram as per API requirements, and marked with size of casing and rated
working capacity. each casing elevator is provided grease nipples for
lubrication of the movable pins, API monogram in conjunction with numbers,
product series numbers are hard die stamped on shoulders of casing elevators
for tracing, and casing elevators shoulders are die stamped with size of
casing and rated working capacity. Manufacturer¡¯s name plates are provided
on bodies of casing elevators, warranty for casing elevators are listed in
casing elevator manual, for CD casing elevators used at temperature minus
45¡æ, contact the manufacturer, CD casing elevators may be equipped with
magnetic link block (magnetic safety pin) to ensure much safer and easier
operation. |
Elevator Model |
Bore Dia.
mm |
Casing O.D.
in |
Rated Load
t (kN) |
CD 4½(load) |
116.69 |
4½ |
150 (1350)
200 (1800)
250 (2250)
350 (3150)
500 (4500) |
CD 4¾( ) |
123.04 |
4¾ |
CD 5/( ) |
130.18 |
5 |
CD 5½( ) |
142.88 |
5½ |
CD 5¾( ) |
149.23 |
5¾ |
CD 6/( ) |
155.58 |
6 |
CD 6⅝/( ) |
171.45 |
6⅝ |
CD 7/( ) |
180.98 |
7 |
CD 7⅝/( ) |
197.64 |
7⅝ |
CD 7¾( ) |
200.81 |
7¾ |
CD 8⅝/( ) |
223.04 |
8⅝ |
CD 9/( ) |
232.56 |
9 |
CD 9⅝/( ) |
248.44 |
9⅝ |
CD 9⅞/( ) |
254.79 |
9⅞ |
CD 10¾( ) |
277.83 |
10¾ |
CD 11¾( ) |
303.23 |
11¾ |
CD 12⅞/( ) |
331.80 |
12⅞ |
CD 13⅜/( ) |
344.50 |
13⅜ |
CD 13⅝/( ) |
350.85 |
13⅝ |
CD 14/( ) |
360.76 |
14 |
CD 16/( ) |
411.96 |
16 |
CD 18/( ) |
463.55 |
18 |
CD 18⅝/( ) |
479.43 |
18⅝ |
CD 20/( ) |
515.14 |
20 |
CD 21½( ) |
553.24 |
21½ |
CD 22/( ) |
565.94 |
22 |
CD 24/( ) |
617.55 |
24 |
CD 24½( ) |
630.25 |
24½ |
CD 26/( ) |
669.14 |
26 |
CD 27/( ) |
694.54 |
27 |
CD 28/( ) |
720.32 |
28 |
CD 30/( ) |
771.53 |
30 |
|
Magnetic
safety pin for CD casing elevators |
Configuration and Description of CD casing elevator
 |
S.N. |
Name |
Qty |
1 |
Body |
1 |
2 |
Door |
1 |
3 |
Hinge pin |
1 |
4 |
Hinge pin retainer |
1 |
5 |
Hinge pin carrier |
2 |
6 |
Link retainer |
2 |
7 |
Upper lock |
1 |
8 |
Washer |
1 |
9 |
Safety block iron |
1 |
10 |
Screw pin |
1 |
11 |
O-seal ring |
1 |
12 |
Upper clip ring |
1 |
13 |
Screw pin |
2 |
14 |
Spring |
2 |
15 |
Lower clip ring |
1 |
16 |
Lock pin handle |
1 |
17 |
Handle |
1 |
18 |
Lower lock pin |
1 |
19 |
Left angle
iron |
1 |
20 |
Handle pin |
1 |
21 |
Right angle
iron |
1 |
22 |
Split pin |
1 |
Configuration and exploded
figure for CD casing elevators are the same for
diffrent dimension or working load of elevator. Body,
door and latch are not used as replacement parts, others
are replacement parts. Replacement parts of CD casing
elevators offered by Taixing Company cannot be
interchangeable with those casing elevators supplied by
other manufacturer. |
Compare between SLX casing elevator and CD casing elevator:
SLX casing elevator is popular in most of the world that use American origin handling tools;
CD casing elevator is often used in China, Middle Asia countries. |
